Precast concrete wall panel machine/precast concrete hollow core slab machine

FOB Reference Price:Get Latest Price
$7,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JQT-precast wall panel machine
Max. Working Width:
Customized
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 YEAR
Production Capacity:
1.7M/min
Power(W):
4kw
After-sales Service Provided:
Online support
Condition:
New
Application:
Precast wall panel machine
Automatic Grade:
Automatic
Place of Origin:
Henan, China
Brand Name:
Victory
Voltage:
380v
Dimension(L*W*H):
236*133*72CM
Weight:
1000kg
Features:
Precast slab machine
Certification:
CE ISO
Product name:
Precast wall panel machine
Supply Ability
Supply Ability:
240 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case or container for precast wall panel machine/precast slab machine
Port
Qingdao
Video Description
Product Description

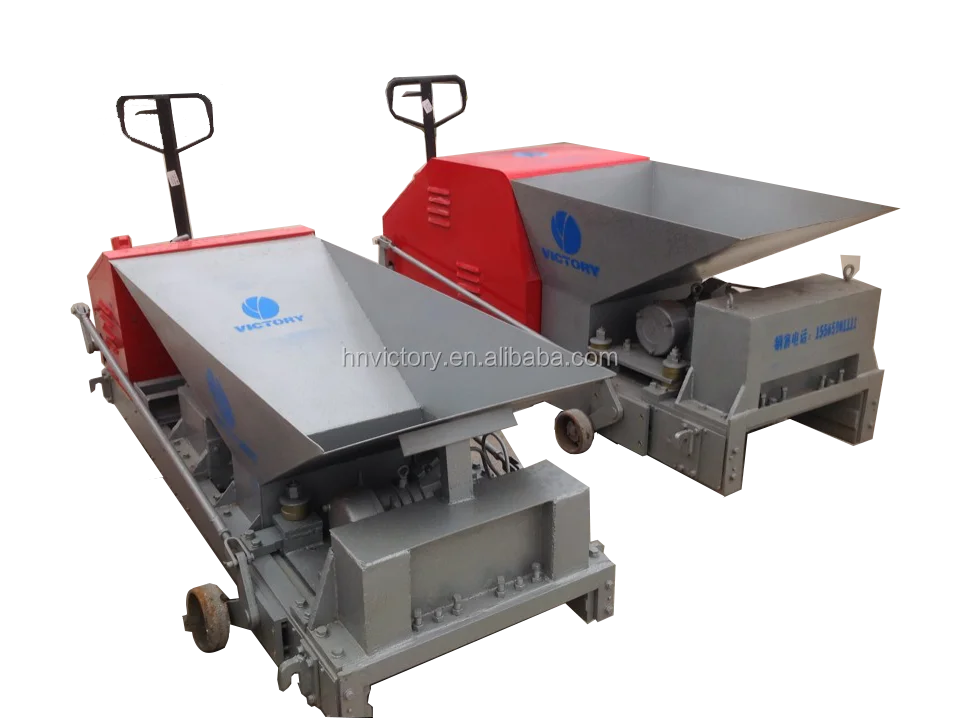

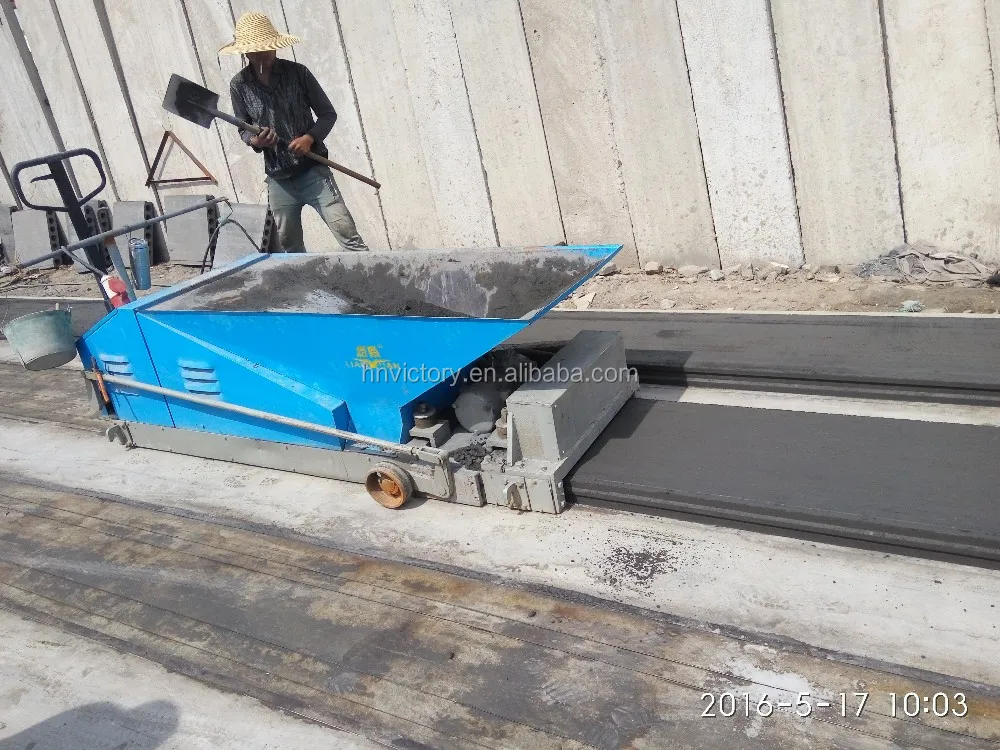

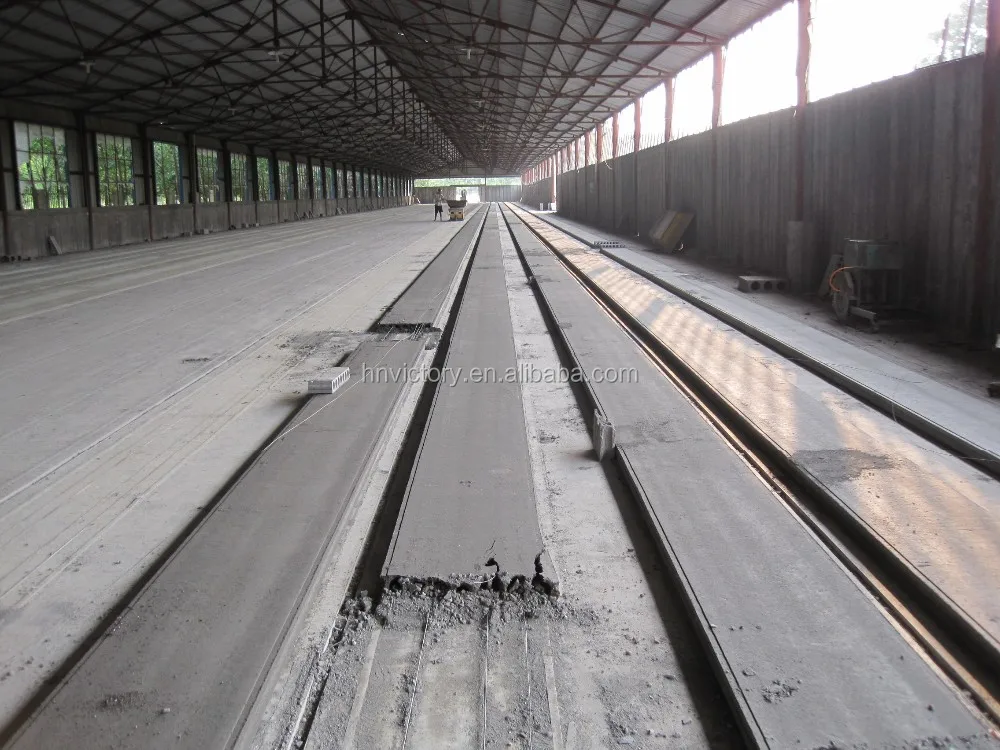

Precast concrete wall panel machine/precast hollow core slab machine

High efficient production can be up to 500 square meters one shift per day (8 hours ) one machine. Combined with low raw material cost,it will bring you an extremely big profit.


We can customized machine according your need, please send me inquiry, let's talk more!

Design

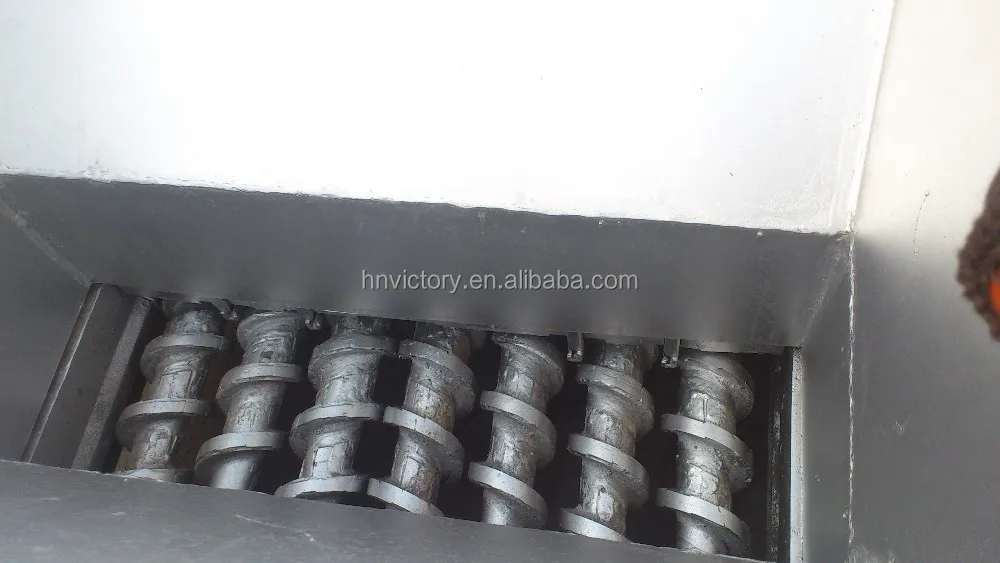

With our unique design of the extruder and vibrator, we can achieve highest concrete compaction.With this system you have the option to integrate reinforcement wires or not . The wires size allow to max.6mm which can increase the strength of wall panels.

Main Features
The wall which is tongued on side and grooved on the other has hollow cores running longitudinally to reduce the weight and optimize the use of materials. The tongue and groove has been specially designed to minimize the risk of cracking along the joints, which is a perennial problem in precast wall panels.

Product Parameters

Precast concrete wall panel machine/precast hollow core slab machine

Contact:Naruto
Wechat:15836812473
Whatsapp:+ 8615836812473

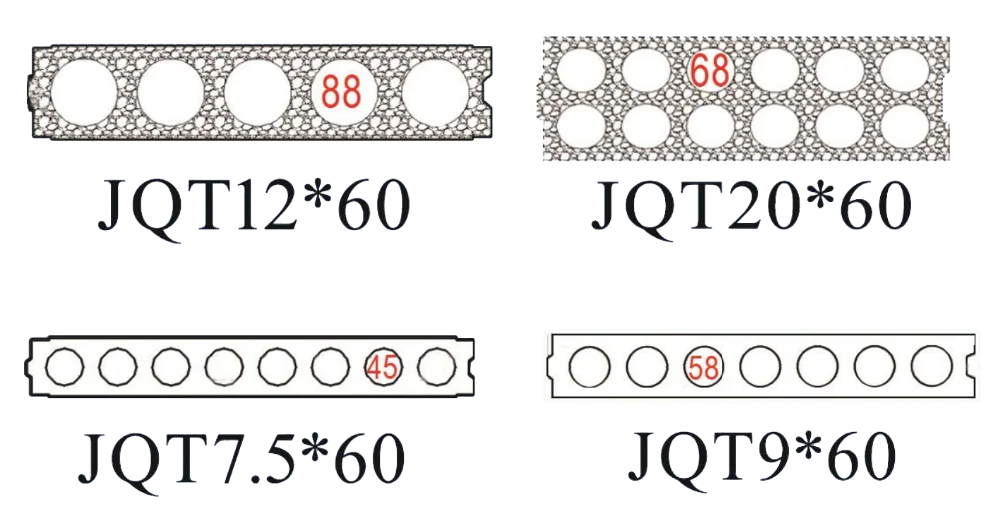

World standard drawing:

Precast concrete wall panel machine/precast hollow core slab machine
Machine
Model
Details of wall panel
Power
DIM
(cm)
WT
(kg)
thk.
(cm)
Width
(cm)
Hole
No.
DIA
(mm)
Main
Motor
(kw)
Vibrate
motor
(kw)
Interior
partition
Wall
JQT6*60
6
60
12
32
4
0.8
236
*113
*72
1000
JQT7.5*60
7.5
60
8
45
JQT8*60
8
60
8
48
JQT9*60
9
60
7
58
JQT10*60
10
60
6
68
JQT11*60
11
60
6
68
JQT12*60
12
60
5
88
5.5
1.1
246
*113
*75
1200
JQT13*60
13
60
5
88
JQT14*60
14
60
5
88
1.2
JQT15*60
15
60
5
100
1250
JQT16*60
16
60
5
100
Exterior
Wall
JQT18*60
18
60
5
108
7.5
1.5
255
*113
*75
1650
JQT20*60
20
60
12
68
2
Speed(m/min): 1.3~1.6        Screw Auger life(km): >=150
Our Customer

Architect Expo2016


Architect Expo2017

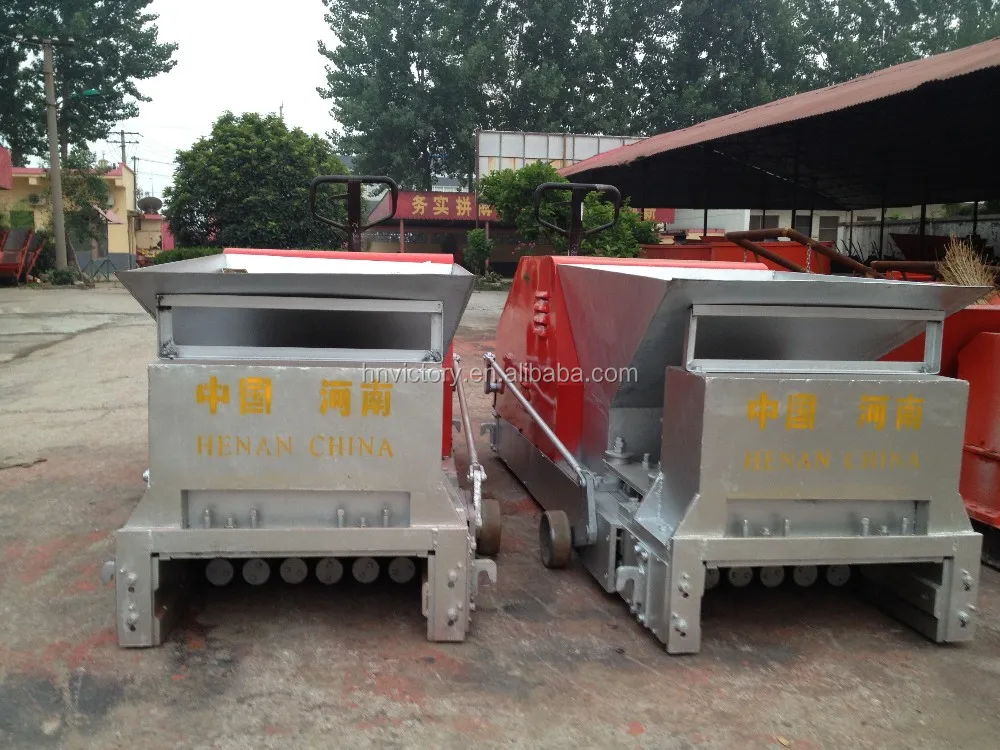

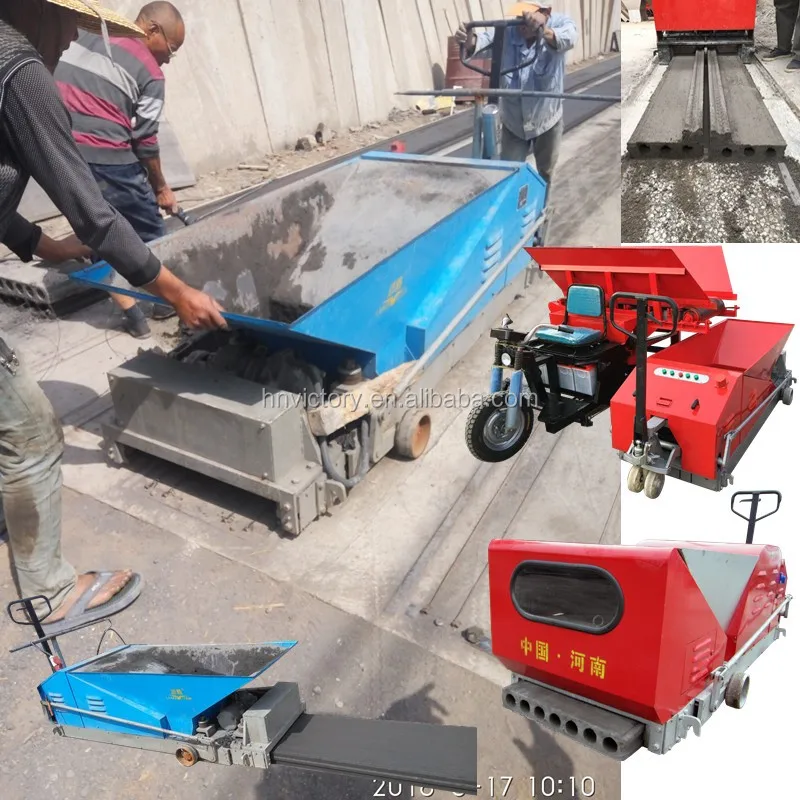

Detailed Images

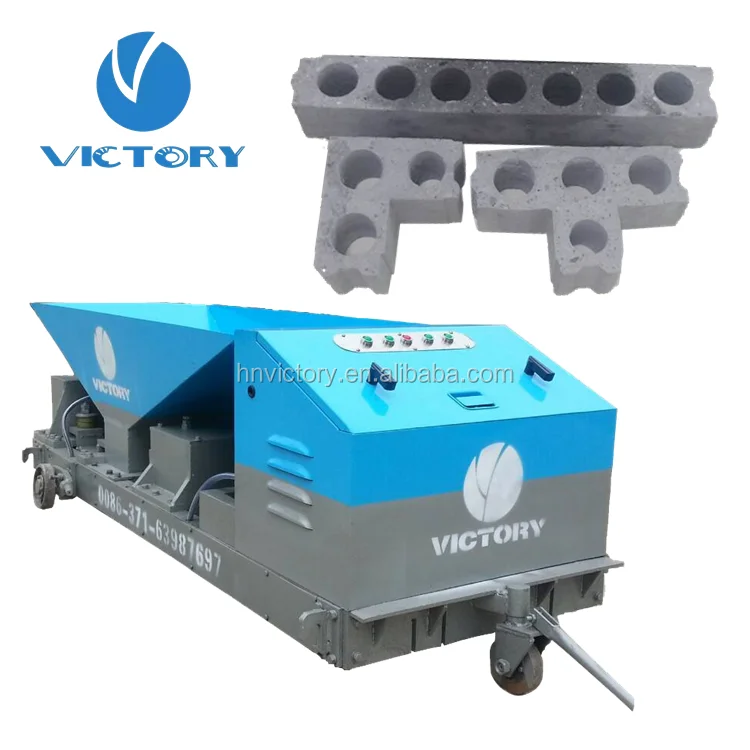

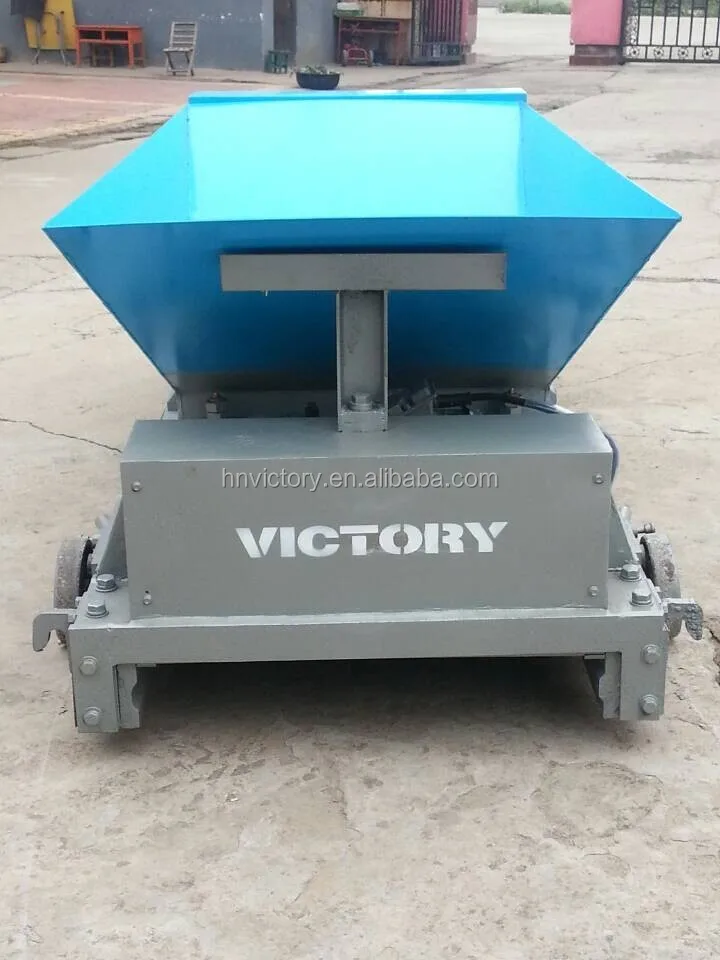

Precast concrete wall panel machine/precast hollow core slab machine

Please send me inquiry, let's talk more!
Packing & Delivery

Precast concrete wall panel machine/precast slab machine

Contact:Naruto
Wechat:15836812473
Whatsapp:+86 15836812473
FAQ for precast concrete wall panel machine:

Question 1. What is the Standard Size of Wall panel machine
For Precast Light weight Wall panel machine, JQT7.5*60 and JQT9*60 is more Standard all over the world ( 75mm thickness, 600mm width etc.)

Question 2. How Much Sqm will be installed 1 day?
Very quickly by Our Wall panel Installer (450sqm/day)

Question 3. Can we use wall panel as Exterior and interior Wall?

Yes, Can be used for both. (Exterior can be Double Layer Holes. Interior can use 9*60 or 7.5*60)

Question 4. How To Order From "Henan Victory Industrial co. ltd."?
Confirm PI (Profroma Invoice) with our sales Man
Payment: 50% deposit, the Balance 50% paid against Bill Of Lading Copy. (Old Customer: 30% &70%)
